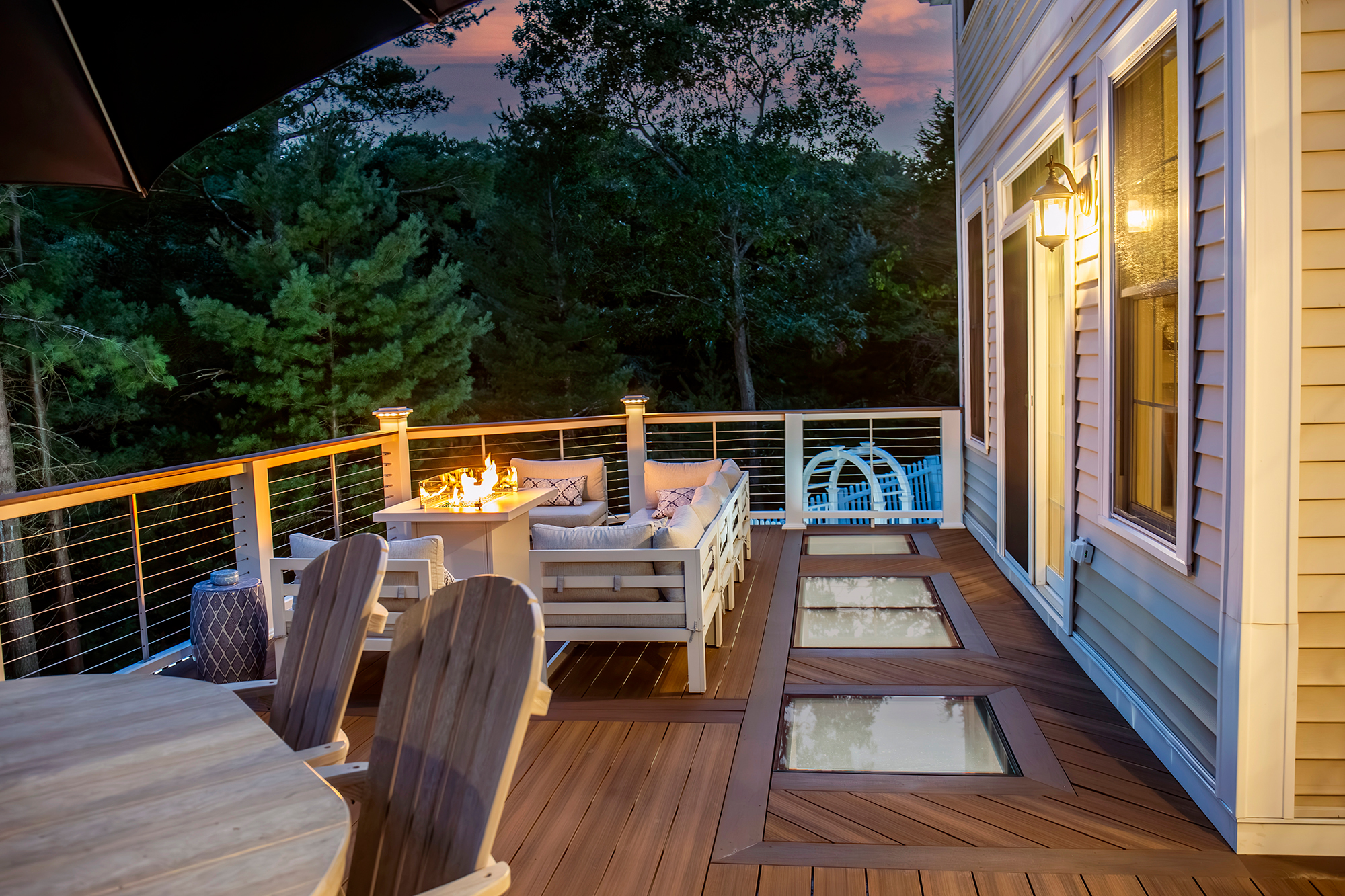

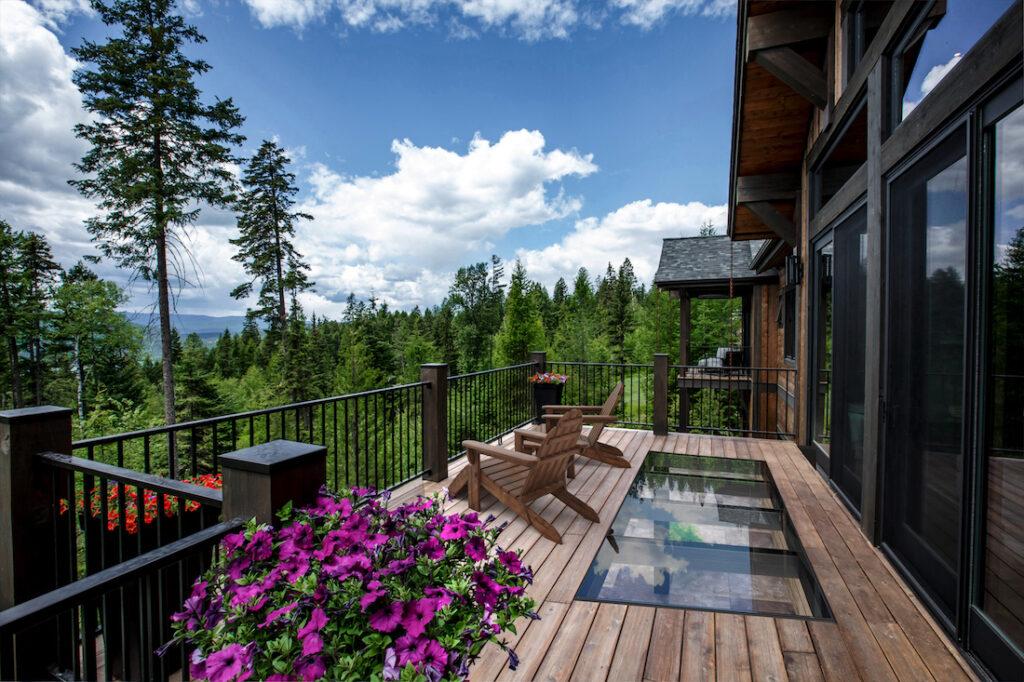

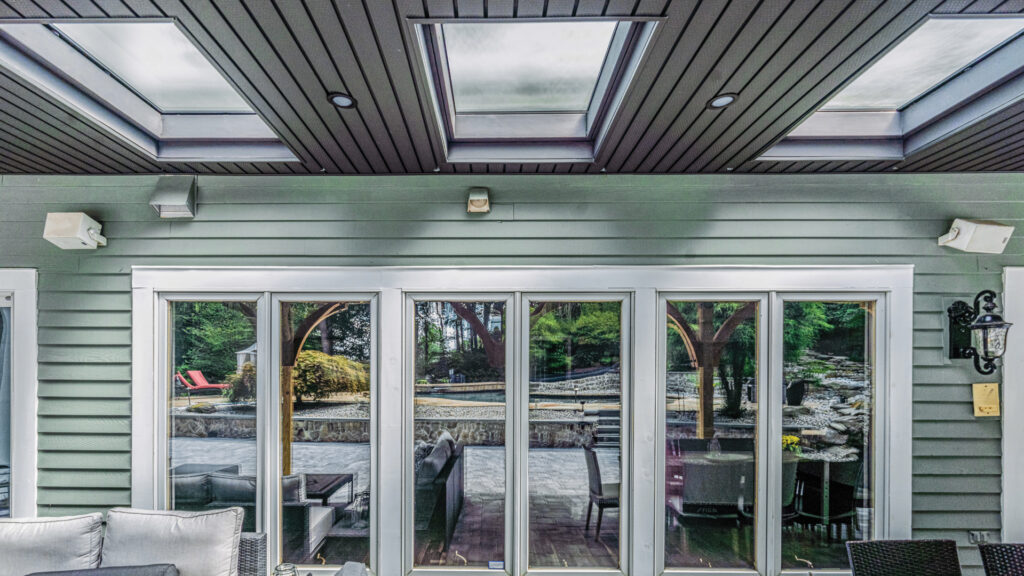

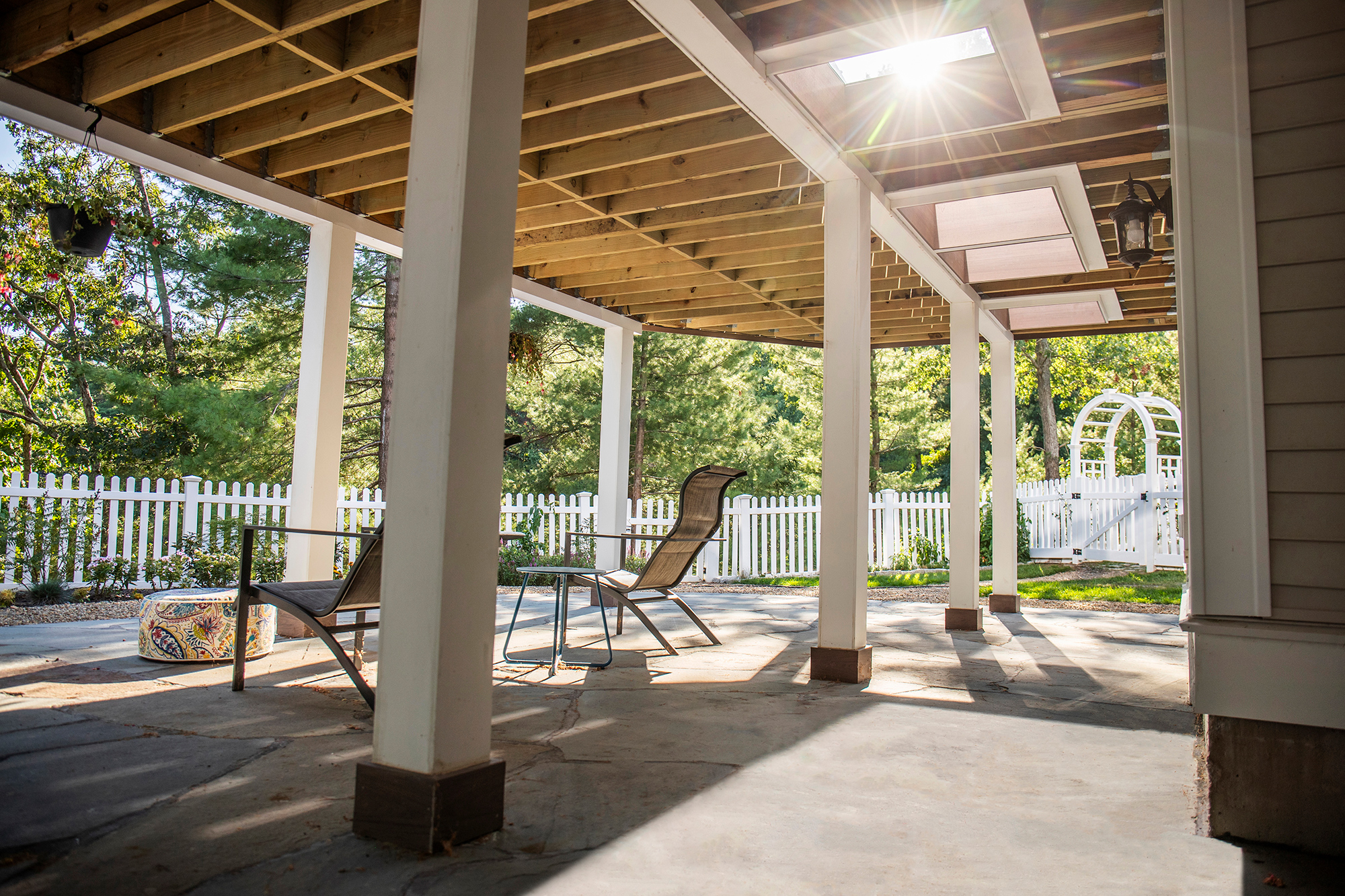

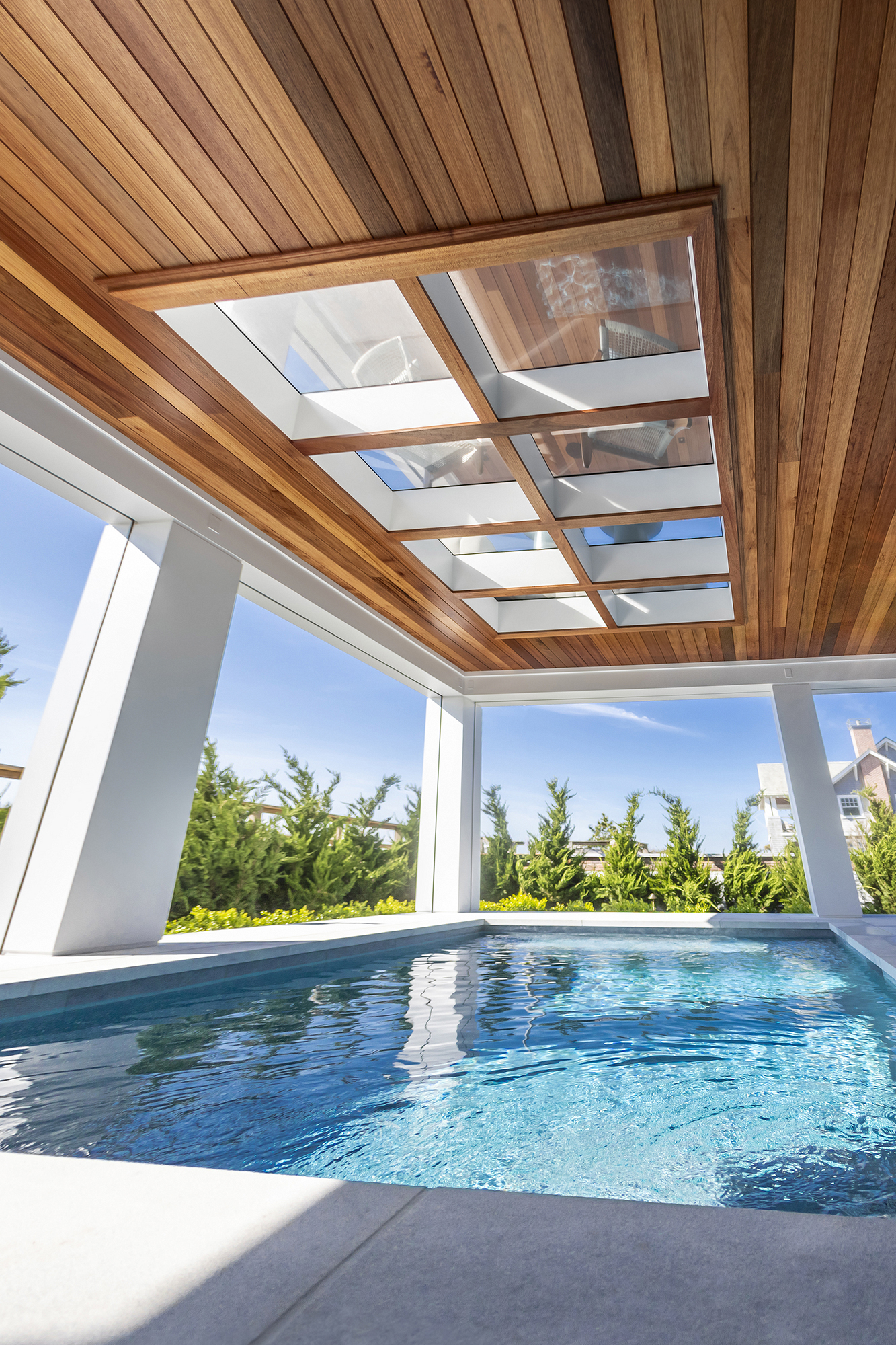

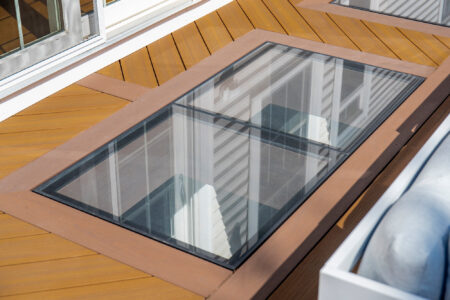

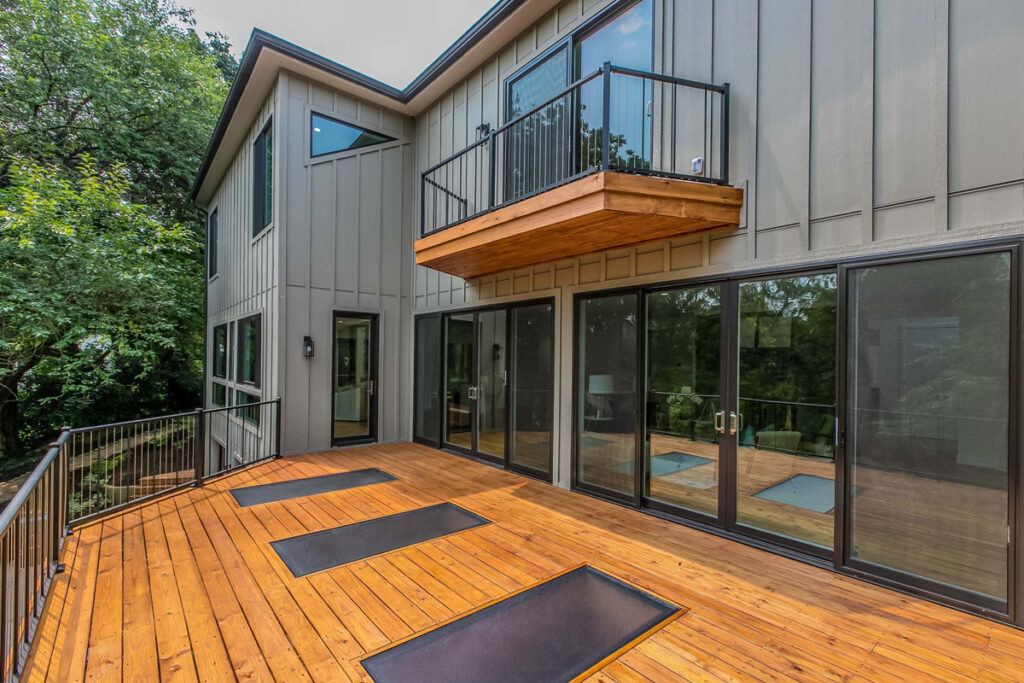

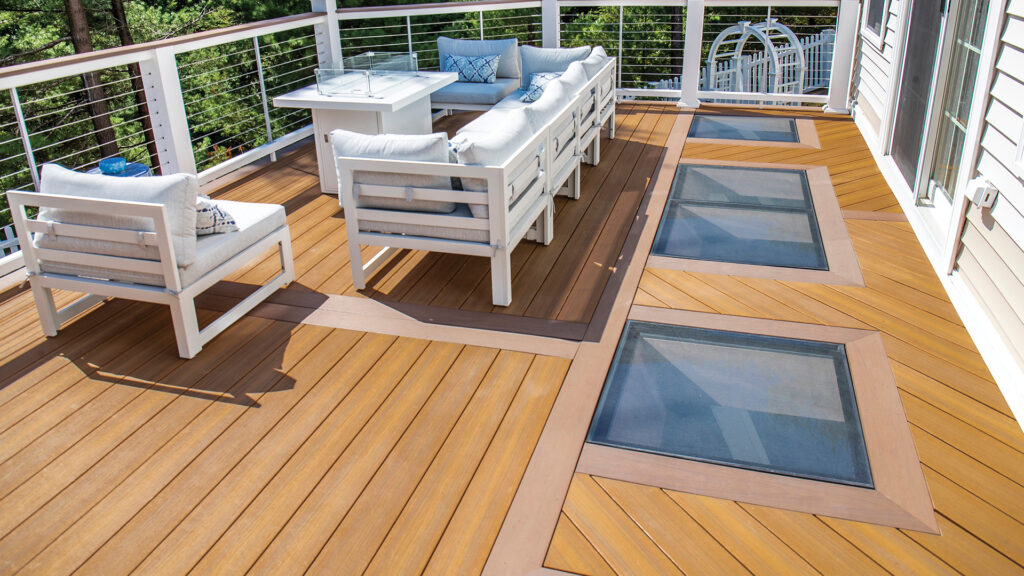

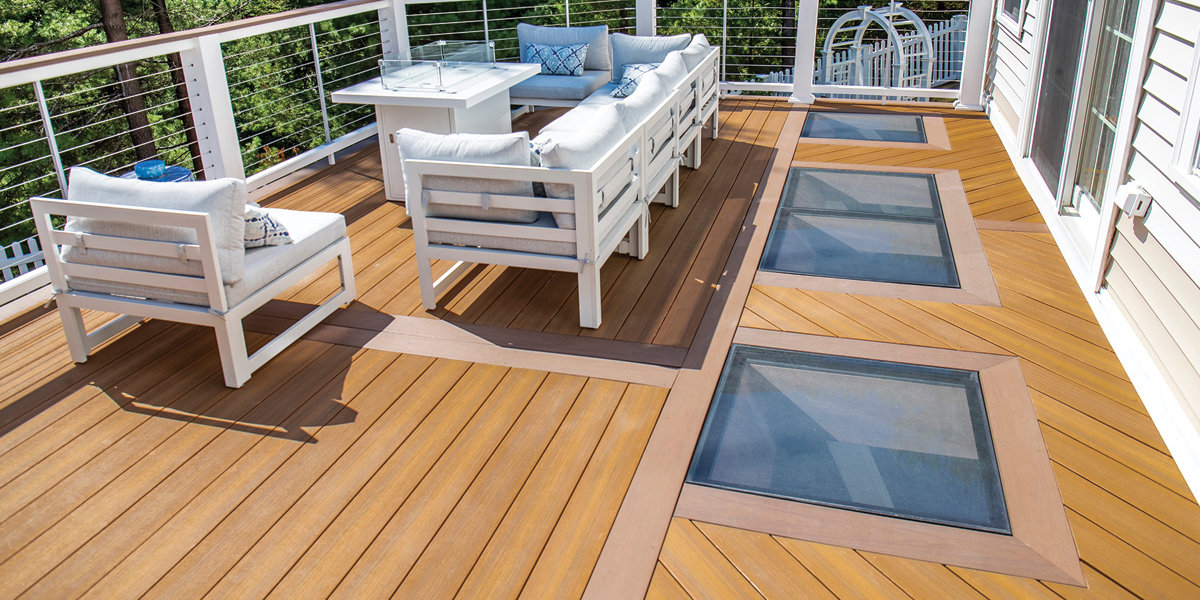

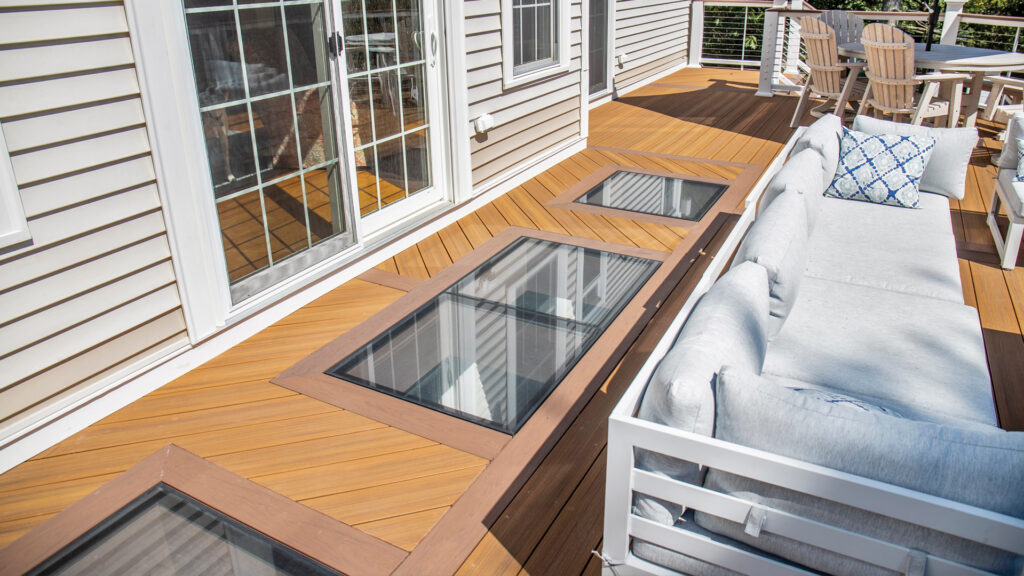

Let your Light Shine Through – Walk on Panels for your Deck

Looking for the latest and greatest new feature for your deck project? Look no further. Our SkyFloor® Modular Deck System is here and will transform, not only your deck but the space below your deck as well. Our patented SkyFloor® Modular Deck System has been designed to be easily integrated into standard deck framing.

The system is available with two standard panel sizes, 32” x 32” and 32” x 48”. Design your project using single units or group them together to produce a stunning large glass floor area.

The SkyFloor® modular glass deck system comes complete with everything you need for a simple easy installation. Included are the structural glass panel(s), frame, setting gasket, silicone, and fasteners along with easy-to-follow instructions and product drawings

To make things even easier we’ve had our the SkyFloor® Modular Glass Deck system certified by the ICC (International Code Council). This ICC-ES evaluation report certifies that our SkyFloor® Modular Glass Deck System meets building code requirements. This report eliminates the need for engineering of our product and assures your local building department of code compliance, eliminating any concerns your building department may have. It’s that simple. Our ICC-ES evaluation report is included with your system.

Ordering and visualizing your SkyFloor® Modular Glass Deck system is simple with our four step online process. Get started now!

  • Complete system – everything you need is included (excluding tools and labor)
  • Easy installation
  • Works within standard 16” center of joist deck framing
  • 33.04 mm Pre-Engineered tempered / laminated structural glass
  • Tested Anti-slip surfaces – ANSI A326.3
  • Low Iron “standard”
  • Ceramic back painted perimeter “standard”
  • Shop drawings are included
  • ICC approved for easy building department approval
  • Dow Corning® 995 Structural Silicone “included”

Watch How Easy Here

Visualize And Price Your Glass Deck here with Four Easy Steps

Step 1 - Choose Your Panel Layout

or

Step 2 - Choose Your Panel Size

Step 3 - Choose Your Panel Layout and Configuration


32"
64"
96"
128"
32"
64"

Step 4 - Choose Your Anti-Slip Texture

YorLux™ regular for “obscure / privacy” tested anti-slip surface

YorLux™ Regular

NanoDot® for the “clear see through” tested anti-slip surface

NanoDot®

Glass Flooring Panel

$0.00$14,412.63

SKU: 10001 Category:

Additional information

Weight N/A
Dimensions 1 in
Shape

Rectangular, Square

Panel

32 x 32, 32 x 64, 32 x 96, 32 x 128, 64 x 64, 64 x 96, 64 x 128, 32 x 48, 48 x 64, 48 x 96, 48 x 128, 96 x 96, 96 x 128

Coating

NanoDot®, YorLux™

ICC Logo

Let your Light Shine Through – Walk on Panels for your Deck

Looking for the latest and greatest new feature for your deck project? Look no further. Our SkyFloor® Modular Deck System is here and will transform, not only your deck but the space below your deck as well. Our patented SkyFloor® Modular Deck System has been designed to be easily integrated into standard deck framing.

The system is available with two standard panel sizes, 32” x 32” and 32” x 48”. Design your project using single units or group them together to produce a stunning large glass floor area.

The SkyFloor® modular glass deck system comes complete with everything you need for a simple easy installation. Included are the structural glass panel(s), frame, setting gasket, silicone, and fasteners along with easy-to-follow instructions and product drawings

To make things even easier we’ve had our the SkyFloor® Modular Glass Deck system certified by the ICC (International Code Council). This ICC-ES evaluation report certifies that our SkyFloor® Modular Glass Deck System meets building code requirements. This report eliminates the need for engineering of our product and assures your local building department of code compliance, eliminating any concerns your building department may have. It’s that simple. Our ICC-ES evaluation report is included with your system.

Ordering and visualizing your SkyFloor® Modular Glass Deck system is simple with our four step online process. Get started now!

  • Complete system – everything you need is included (excluding tools and labor)
  • Easy installation
  • Works within standard 16” center of joist deck framing
  • 33.04 mm Pre-Engineered tempered / laminated structural glass
  • Tested Anti-slip surfaces – ANSI A326.3
  • Low Iron “standard”
  • Ceramic back painted perimeter “standard”
  • Shop drawings are included
  • ICC approved for easy building department approval
  • Dow Corning® 995 Structural Silicone “included”

Watch How Easy Here

Product Description

SkyFloor® Modular Glass Deck Panels are 33.04mm thick and consist of triple tempered – laminated low iron structural walkable glass and includes our extruded aluminum frame with fitted EPDM setting gasket. Dow Corning® structural silicone & stainless-steel fasteners

Glass Panel Construction

  • 10mm Low Iron Tempered
  • 1.52mm Saflex® DG structural interlayer
  • 10mm Low Iron Tempered
  • 1.52mm Saflex® DG structural interlayer
  • 10mm Low Iron Tempered
  • Ceramic back paint at perimeter of glass “standard

Available surface textures

  • NanoDot® for the “clear see through” tested anti-slip surface

  • YorLux™ regular for “obscure / privacy” tested anti-slip surface

Frame

  • Aluminum frame: 6063-T6 extruded aluminum
  • PPG Coraflon® painted finish “black” meets AAMA 2605
  • Setting rubber gasket: EPDM 80 shore hardness – “black” snap on / fitted to frame
  • Dow Corning 995 structural silicone with closed cell backer rod
  • Stainless steel anchoring fasteners
Perimeter frame detail





Multi panel frame detail



Product Drawings
ICC Certification – ESR-5009
FAQ

Q: How much do the glass panels weigh?
A: The 32” x32” weight is 106 lbs. each and our 32” x 48”is 160 lbs. each.

Q: How do I maintain this product
A: Like other glass products, our glass can simply be cleaned with everyday glass cleaner or soapy water.

Q: Can this product be used inside my home?
A: yes, this product can be used as an interior glass floor panel.

Q: My outside deck has a living space below the location where want to install this product (heated and or air-conditioned interior space), does this product work for me?
A: No, you should be using our Series 1000 or 2000 SkyFloor® thermally broken skylight systems. These include insulated glass, thermally broken frames and are intended to be waterproofed to the building.

Q: Is the glass slippery?
A: Our SkyFloor® Modular Glass Deck Panels are tested to conform with ANSI A326.3 (The American National Standard) test method for measuring dynamic coefficient of friction (DCOF) of hard surface flooring materials. We recommend maintaining our products with a regular cleaning. Keeping the glass surface free of oil or other contaminants is important for maintaining the anti-slip characteristics of our glass.

Q: What is ceramic back paint and why is it important?
A: We paint the bottom layer at the perimeter edge on all four sides of each panel of glass with ceramic paint, this paint is then fused to the surface of the glass in the tempering process. This paint is only in the location of where the glass sits over the EPDM setting gasket of the frame. The visual appearance of our products is one of our highest priorities, this process leaves the perimeter border of the glass a crisp “black” finish when viewed through the glass panel.

Q: What is the best method of handling the glass panels:
A: Most glazing industry suction cups work for handling the glass panels, we offer Nemo Grabo® battery powered suction cups for sale on our website.

Q: How large can SkyFloor® modular deck system be?

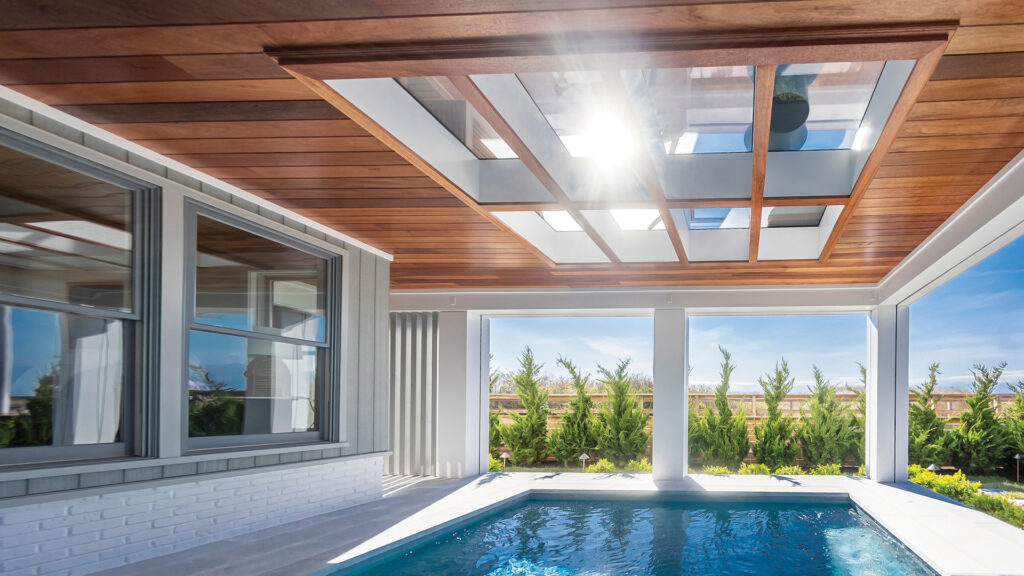

A: The SkyFloor® Modular Glass Deck System is available on our website with a maximum size of 96” x 128” using eight of our “STANDARD” 32” x48” panels. Larger sizes are available upon request. Please send inquires to sales@glassflooringsystems.com or call us 862-701-5320.

Q: Can I waterproof the SkyFloor® modular glass deck system
A: Yes, the SkyFloor® modular glass deck system can be waterproofed to your deck using several methods. please call estimating 862-701-5320 to discuss the specific details related to your project and they will guide you to the proper method for your project.

Q: Does the glass scratch and what can I do to protect it?
A: All glass can scratch if abused, we recommended that abrasive material such a sand or dirt not be directly in the traffic pattern of the glass panels.

Q: I’m concerned about engineering and approval from the building department
A: Our SkyFloor® Modular Glass Deck System has taken the worries out of this by having our systems certified by the ICC (International Code Council). This product has been engineered to comply with the strictest ASTM and ANSI standards.

Q: What is an ICC-ESR Evaluation report? And why do I need it?
A: Local building code officials utilize ICC – ESR reports as the most preferred resource to verify that a specific building product complies with code requirements. These evaluation reports provide information about what code requirements or acceptance criteria were used to evaluate the product, and how the product should be installed to meet the requirements.

Q: When designing and engineering our deck project what is the weight of the system?
A: Our SkyFloor® Modular Glass Deck System weight is 15lbs per square foot of surface area.

Q: Do you ship outside the US?
A: Yes, we ship internationally. If you require shipping outside the US please call 862-701-5320 and one of our product specialist can assist you with your shipping needs.

Shipping

We ship to all 50 States *Special Pricing for Alaska & Hawaii. Please call 862-701-5320*

Shipments are Fully Insured

Signature is required at time of delivery

Shipping Method: FedEx Freight

Ships from our facility in Sparta, New Jersey

FedEx will off load from their vehicle on site

Glass Flooring Systems Inc. ships Via FedEx Freight. FedEx will call to set up an appointment.

Included service for freight shipments is curbside or dock delivery.

If you require shipping outside of the US please call 862-701-5320 and one of our product specialist can assist you with your shipping needs.

Samples, Parts and Tools

32×32 Glass Panel

$1,028.69$1,245.41

SKU: 10002 Category:

Description

32×32 Glass Panels

SkyFloor® Modular Glass Deck Panels are 33.04mm thick and consist of triple tempered – laminated low iron structural walkable glass

Glass Panel Construction

  • 10mm Low Iron Tempered
  • 1.52mm Saflex® DG structural interlayer
  • 10mm Low Iron Tempered
  • 1.52mm Saflex® DG structural interlayer
  • 10mm Low Iron Tempered
  • Ceramic back paint at perimeter of glass “standard
  • Tested Anti-slip surfaces – ANSI A326.3

Additional information

Weight N/A
Dimensions N/A
Choose your anti-slip surface texture

NanoDot®, YorLux™

32×48 Glass Panel

$1,515.83$1,783.88

SKU: 10003 Category:

Description

32×48 Glass Panels

SkyFloor® Modular Glass Deck Panels are 33.04mm thick and consist of triple tempered – laminated low iron structural walkable glass

Glass Panel Construction

  • 10mm Low Iron Tempered
  • 1.52mm Saflex® DG structural interlayer
  • 10mm Low Iron Tempered
  • 1.52mm Saflex® DG structural interlayer
  • 10mm Low Iron Tempered
  • Ceramic back paint at perimeter of glass “standard
  • Tested Anti-slip surfaces – ANSI A326.3

Additional information

Weight N/A
Dimensions N/A
Choose your anti-slip surface texture

NanoDot®, YorLux™

Sample Kit

$24.99

SKU: GFS-SAMPLE-KIT Category:

Description

Risk free sample purchase – a discount code will be provided at the point of purchase and if used while purchasing one of our SkyFloor® modular deck systems you will receive a refund of the sample cost. SkyFloor® modular deck system sample package includes:

  • 1pc.NanoDot® 4” x 5 7/8” – top surface texture
  • 1pc.YorLux™ Regular® 4” x 5 7/8” – top surface texture
  • 1pc. 5 7/8” SkyFloor® modular deck system perimeter frame with EPDM setting gasket
  • 1pc. 5 7/8” SkyFloor® modular deck system 3 ½” rafter frame with EPDM setting gaskets

* Glass samples are for approval of surface texture only and are not a fully laminated assembly

Additional information

Weight 5 lbs
Dimensions 12 × 8 × 4 in

Dow Corning® 995 Structural Silicone

$22.39

SKU: GFS-SILICONE-995 Category:

Description

  • Dow Corning® 995 Structural Silicone
  • “Black”  10.3 US ounces – standard cartridge

Additional information

Weight 5 lbs
Dimensions 12 × 4 × 4 in

EPDM setting gasket 96”

$44.77

SKU: GFS-RUBBER-GASKET Category:

Description

EPDM setting gasket 96” fits both perimeter and flat SkyFloor® modular deck frame

Additional information

Weight 10 lbs
Dimensions 12 × 12 × 4 in

NemoGrabo® battery operated vacuum suction cup

$249.99

SKU: GFS-VACUUM-CUPS Category:

Description

For NemoGrabo® Technical information

NEMO GRABO kit includes:

  • Nemo GRABO Classic Power Tool
  • 1 Battery, 1 seal and a battery charger.
  • Canvas carrying & storage bag.
  • Extra replacement filter, manual, seal defender, warranty card.

Additional information

Weight 5 lbs
Dimensions 12 × 12 × 6 in
