Replacement Glass Panel
Rectangular – 32″ x 48″
Click On Image To Select Your Texture
$1515.83
YorLux™ Anti-Slip Surface
$1783.88
NanoDot® Anti-Slip Surface

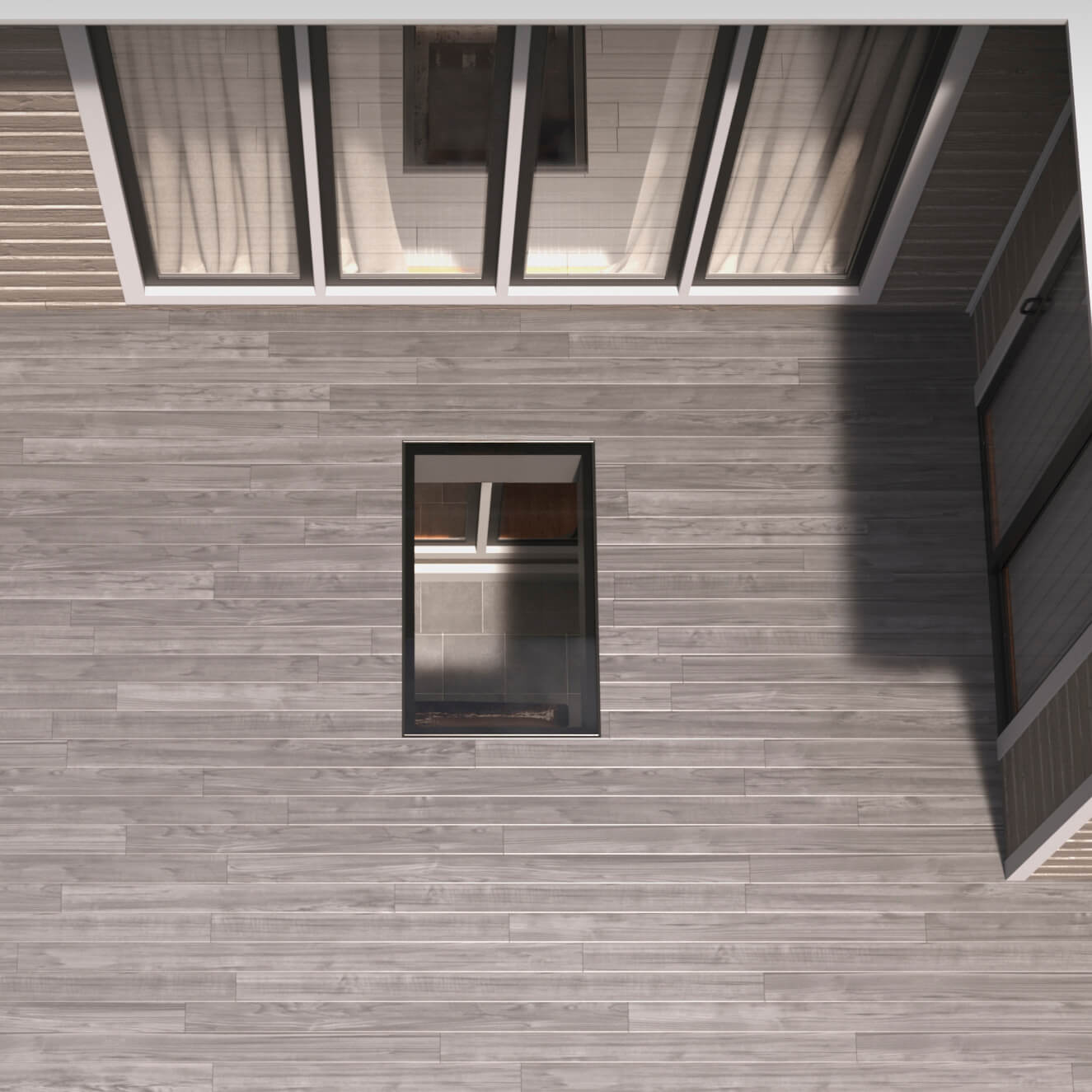

The 32″ × 48″ Replacement Glass Panel consists of three low-iron tempered glass plies laminated together with Saflex® structural interlayers to form a single, durable walkable panel and is supplied with either our NanoDot® or YorLux™ tested anti-slip surface.
Each laminated panel features a ceramic back-painted border that conceals the setting interface and provides a crisp, clean finished appearance. Manufactured to system-specific tolerances, this replacement panel ensures proper fit, performance, and visual consistency within existing Modular Glass Deck System installations.
Glass Panel Construction
- 10 mm low-iron tempered glass
- 1.52 mm Saflex® DG structural interlayer
- 10 mm low-iron tempered glass
- 1.52 mm Saflex® DG structural interlayer
- 10 mm low-iron tempered glass
- Ceramic back paint at the glass perimeter (standard)
Product Drawings
- 32X32-Individual-GFS32X32YL-GFS32X32ND
- 32X48-Individual-GFS32X48YL-GFS32X48ND
- 32X64-Multi-Panel-GFS32X64YL-GFS32X64ND
- 32X96-Multi-Panel-GFS32X96YL-2-GFS32X96ND-2
- 32X96-Multi-Panel-GFS32X96YL-3-GFS32X96ND-3
- 32X128-Multi-Panel-GFS32X128YL-GFS32X128ND
- 48X64-Multi-Panel-GFS48X64YL-GFS48X64ND
- 48X96-Multi-Panel-GFS48X96YL-GFS48X96ND
- 48X128-Multi-Panel-GFS48X128YL-GFS48X128ND
- 64X64-Multi-Panel-GFS64X64YL-GFS64X64ND
- 64X96-Multi-Panel-GFS64X96YL-GFS64X96ND
- 96X64-Multi-Panel-GFS96X64YL-GFS96X64ND
- 96X96-Multi-Panel-GFS96X96YL-GFS96X96ND
- 128X64-Multi-Panel-GFS128X64YL-GFS128X64ND
- 128X96-Multi-Panel-GFS128X96YL-GFS128X96ND
ICC Certification – ESR-4009
FAQ
Q: How much do the glass panels weigh?
A: The 32” x32” weight is 106 lbs. each and our 32” x 48”is 160 lbs. each.
Q: How do I maintain this product
A: Like other glass products, our glass can simply be cleaned with everyday glass cleaner or soapy water.
Q: Can this product be used inside my home?
A: yes, this product can be used as an interior glass floor panel.
Q: My outside deck has a living space below the location where want to install this product (heated and or air-conditioned interior space), does this product work for me?
A: No, you should be using our Series 1000 or 2000 SkyFloor® thermally broken skylight systems. These include insulated glass, thermally broken frames and are intended to be waterproofed to the building.
Q: Is the glass slippery?
A: Our SkyFloor® Modular Glass Deck Panels are tested to conform with ANSI A326.3 (The American National Standard) test method for measuring dynamic coefficient of friction (DCOF) of hard surface flooring materials. We recommend maintaining our products with a regular cleaning. Keeping the glass surface free of oil or other contaminants is important for maintaining the anti-slip characteristics of our glass.
Q: What is ceramic back paint and why is it important?
A: We paint the bottom layer at the perimeter edge on all four sides of each panel of glass with ceramic paint, this paint is then fused to the surface of the glass in the tempering process. This paint is only in the location of where the glass sits over the EPDM setting gasket of the frame. The visual appearance of our products is one of our highest priorities, this process leaves the perimeter border of the glass a crisp “black” finish when viewed through the glass panel.
Q: What is the best method of handling the glass panels:
A: Most glazing industry suction cups work for handling the glass panels, we offer Nemo Grabo® battery powered suction cups for sale on our website.
Q: How large can SkyFloor® modular deck system be?
A: The SkyFloor® Modular Glass Deck System is available on our website with a maximum size of 96” x 128” using eight of our “STANDARD” 32” x48” panels. Larger sizes are available upon request. Please send inquires to sales@glassflooringsystems.com or call us 862-701-5320.
Q: Can I waterproof the SkyFloor® modular glass deck system
A: Yes, the SkyFloor® modular glass deck system can be waterproofed to your deck using several methods. please call estimating 862-701-5320 to discuss the specific details related to your project and they will guide you to the proper method for your project.
Q: Does the glass scratch and what can I do to protect it?
A: All glass can scratch if abused, we recommended that abrasive material such a sand or dirt not be directly in the traffic pattern of the glass panels.
Q: I’m concerned about engineering and approval from the building department
A: Our SkyFloor® Modular Glass Deck System has taken the worries out of this by having our systems certified by the ICC (International Code Council). This product has been engineered to comply with the strictest ASTM and ANSI standards.
Q: What is an ICC-ESR Evaluation report? And why do I need it?
A: Local building code officials utilize ICC – ESR reports as the most preferred resource to verify that a specific building product complies with code requirements. These evaluation reports provide information about what code requirements or acceptance criteria were used to evaluate the product, and how the product should be installed to meet the requirements.
Q: When designing and engineering our deck project what is the weight of the system?
A: Our SkyFloor® Modular Glass Deck System weight is 15lbs per square foot of surface area.
Q: Do you ship outside the US?
A: Yes, we ship internationally. If you require shipping outside the US please call 862-701-5320 and one of our product specialist can assist you with your shipping needs.
Shipping
We ship to all 50 States *Special Pricing for Alaska & Hawaii. Please call 862-701-5320*
Shipments are Fully Insured
Signature is required at time of delivery
Shipping Method: FedEx Freight
Ships from our facility in Sparta, New Jersey
FedEx will off load from their vehicle on site
Glass Flooring Systems Inc. ships Via FedEx Freight. FedEx will call to set up an appointment.
Included service for freight shipments is curbside or dock delivery.
If you require shipping outside of the US please call 862-701-5320 and one of our product specialist can assist you with your shipping needs.
