Walkable glass architecture unites transparency, strength, and structure, allowing light to move freely through the built environment without sacrificing safety or performance. With modern advances in walkable structural glass, architects can design spaces that connect levels, blur boundaries, and introduce daylight to areas once left in the shadows.
From walkable skylights, interior glass floors, glass staircases, treads and landings, glass bridges, and fully structural glass decks, today’s systems are engineered to perform. This guide explores how to design, specify, and integrate walkable architectural glass into your projects with confidence.
Table of
Contents
Fundamentals of Walkable
GLASS ARCHITECTURE
Every successful design begins with a shared understanding of what walkable glass means. In architecture, it’s not simply transparent flooring; it’s walkable structural glass designed to integrate seamlessly into load bearing and daylighting systems while meeting strict safety, anti-slip, and performance standards.
Walkable glass systems fall into several key categories:
- Walkable skylights that transmit daylight through roof assemblies while maintaining the usable roof space.

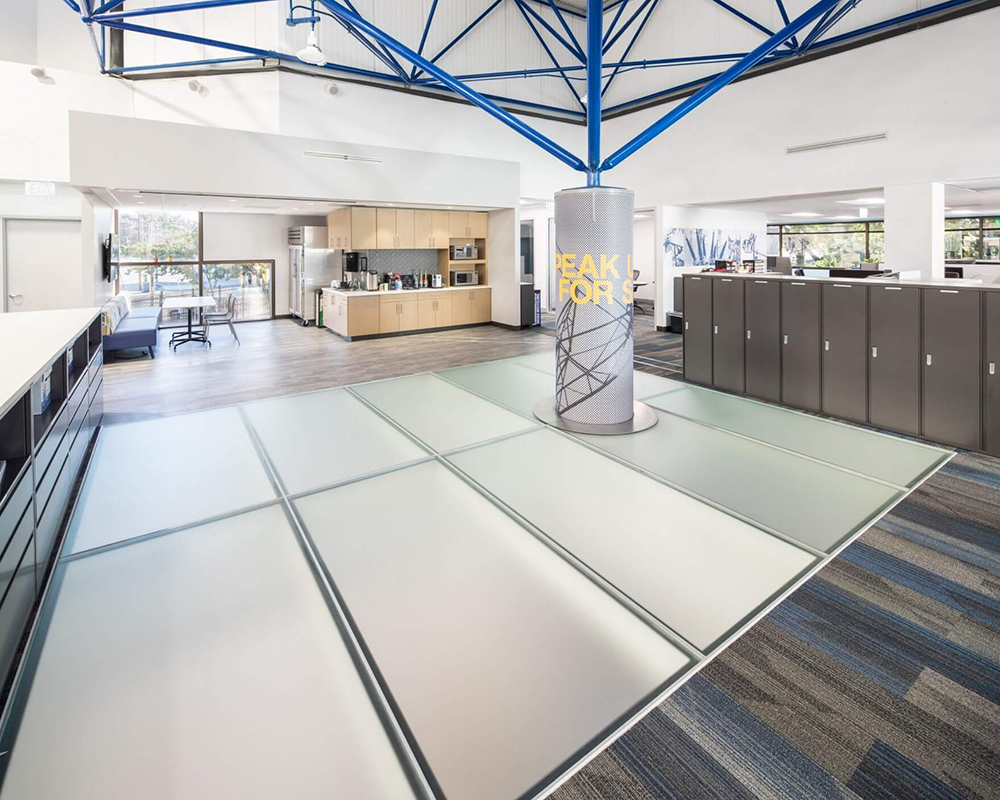

- Interior glass floors that open multi-level spaces and distribute light.
- Glass bridges and catwalks that promote circulation without visual barriers.
- Glass staircases, treads, and landings combine safe vertical circulation with transparency and visual continuity. In addition, these staircases offer a modern and elegant architectural focal point.
- Fully structural glass decks that extend usable outdoor space and allow for the continuation of daylight to the spaces below the deck.
Each system combines laminated tempered walkable glass, specialized interlayers, tested anti-slip textures, and engineered framing to deliver both aesthetic beauty and measurable performance.
Performance Goals that Define
Walkable Glass Systems
Design intent is only as strong as the metrics that support it. For walkable glass in architecture, performance parameters must address:
Load capacity
Load capacity (live, concentrated and wind loads and impact).
Load capacity (live, concentrated and wind loads and impact).
Slip resistance
Slip resistance meeting the ANSI A326.3 safety standard, verified through third party testing.
Slip resistance meeting the ANSI A326.3 safety standard, verified through third party testing.
Thermal efficiency
Thermal efficiency, particularly for exterior walkable skylights, with ICC-certified safety, NFRC certification, and ENERGY STAR® ratings for reliable energy performance offered at Glass Flooring Systems.
Thermal efficiency, particularly for exterior walkable skylights, with ICC-certified safety, NFRC certification, and ENERGY STAR® ratings for reliable energy performance offered at Glass Flooring Systems.
By defining these goals early, architects can balance aesthetics with constructability. At Glass Flooring Systems, we work with you from initial design and engineering and from concept to completion to provide walkable glass assemblies that meet project specific building code requirements.
DAYLIGHTING STRATEGY
From Concept to Calculations
Daylight is the defining advantage of walkable glass architecture. Properly designed, it transforms interiors; brightening indoor spaces and connecting occupants with the outdoors.
Architects should analyze each horizontal plane, walkable skylights, glass floors, glass stair treads and landings, and glass decks, to model solar gain, glare, and illuminance. Together, these elements reduce energy loads, improve occupant comfort, and enhance spatial perception.
A coordinated daylighting plan integrates coatings, frits, Vanceva® colored interlayers, and tested anti-slip textures that manage glare while maintaining the architectural language of openness.
Privacy, View Control,
and Surface Effects
In walkable glass applications, privacy and safety often intersect. Tested anti-slip textures and decorative effects serve both functional and visual roles. Architects can fine-tune transparency and reflection using:
Tested Anti-slip Textures
Tested anti-slip textures with a variety of patterns and satin or etched finishes for diffused light and added privacy.
Tested anti-slip textures with a variety of patterns and satin or etched finishes for diffused light and added privacy.
Vanceva® Colored Interlayers
Vanceva® colored interlayers or frits to soften silhouettes and manage color temperature of the glass panels.
Vanceva® colored interlayers or frits to soften silhouettes and manage color temperature of the glass panels.
Ceramic back-paint
Ceramic back-paint to conceal fixings and define visual boundaries.
Ceramic back-paint to conceal fixings and define visual boundaries.
These design choices enhance safety and control light while reinforcing design intent, whether the goal is to reveal structure, diffuse light, or preserve openness between spaces.
WALKABLE GLASS
Loads, Details, and Tolerances
Each walkable panel should be supported by detailed structural analysis, precise engineering calculations, and project-specific shop drawings that reflect actual field conditions. Every component, from framing and glass makeup to interlayers and tested anti-slip surfaces, should not only meet design requirements but also perform in harmony, delivering a walkable glass system that meets code compliance, exceeds safety standards, and endures with strength and beauty.

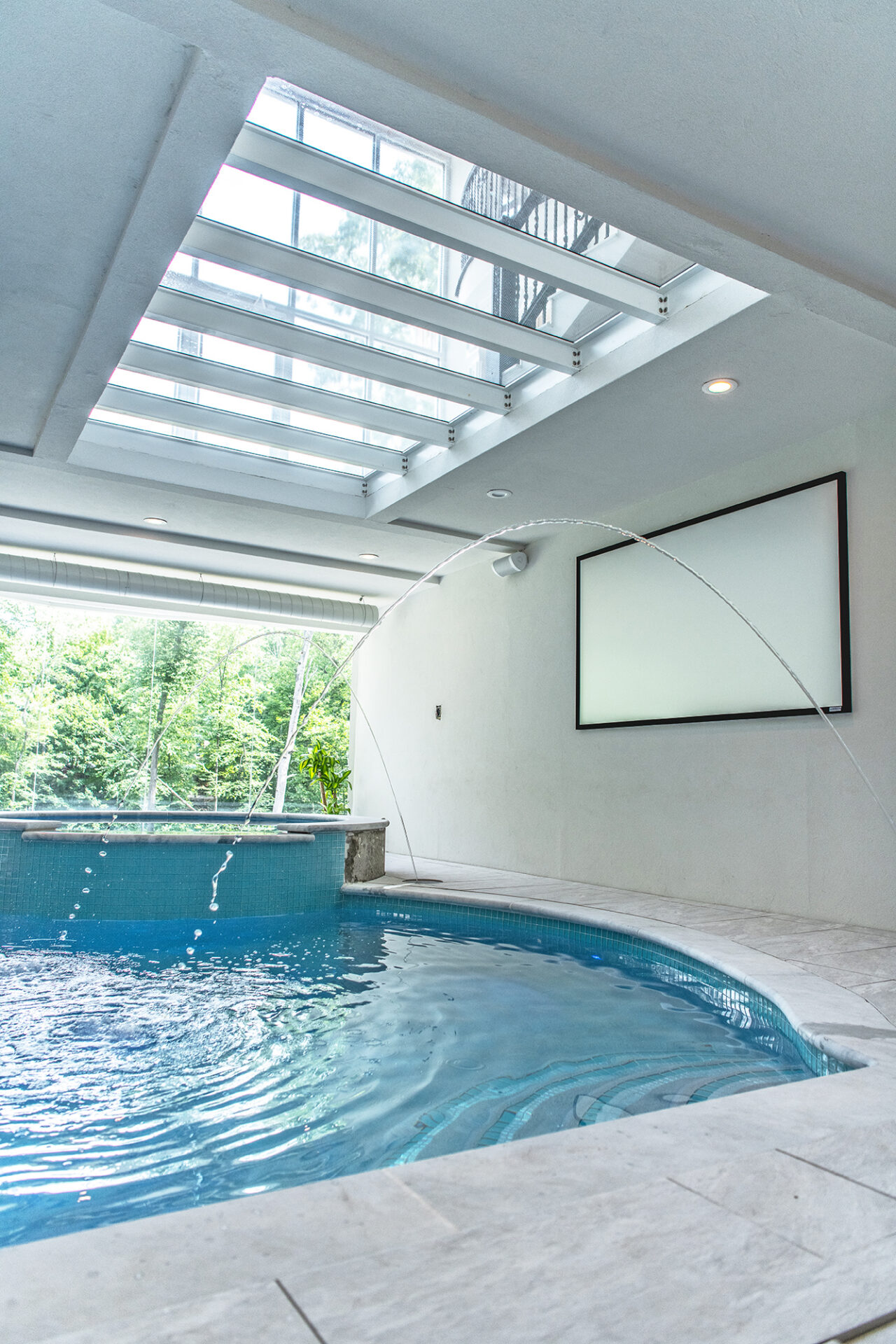

Building Envelopes that
Integrate Walkable Glass
A walkable skylight transforms your building by flooding interiors with natural light, expanding usable rooftop or deck space, and enhancing energy efficiency. Precision-engineered for safety and durability, these skylights provide a modern, sophisticated aesthetic while promoting occupant wellness and increasing property value.
Functional, stylish, and performance-driven, a walkable skylight is the ultimate way to elevate both design and experience. Pair with green roofs to unlock sustainability benefits; transforming rooftops into functional, stylish amenities.

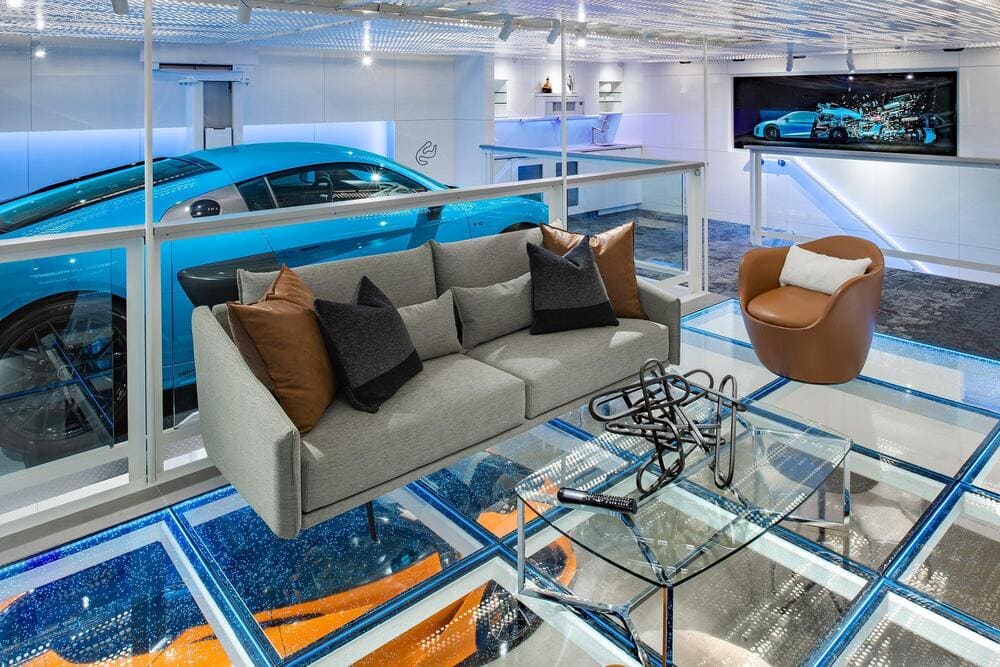

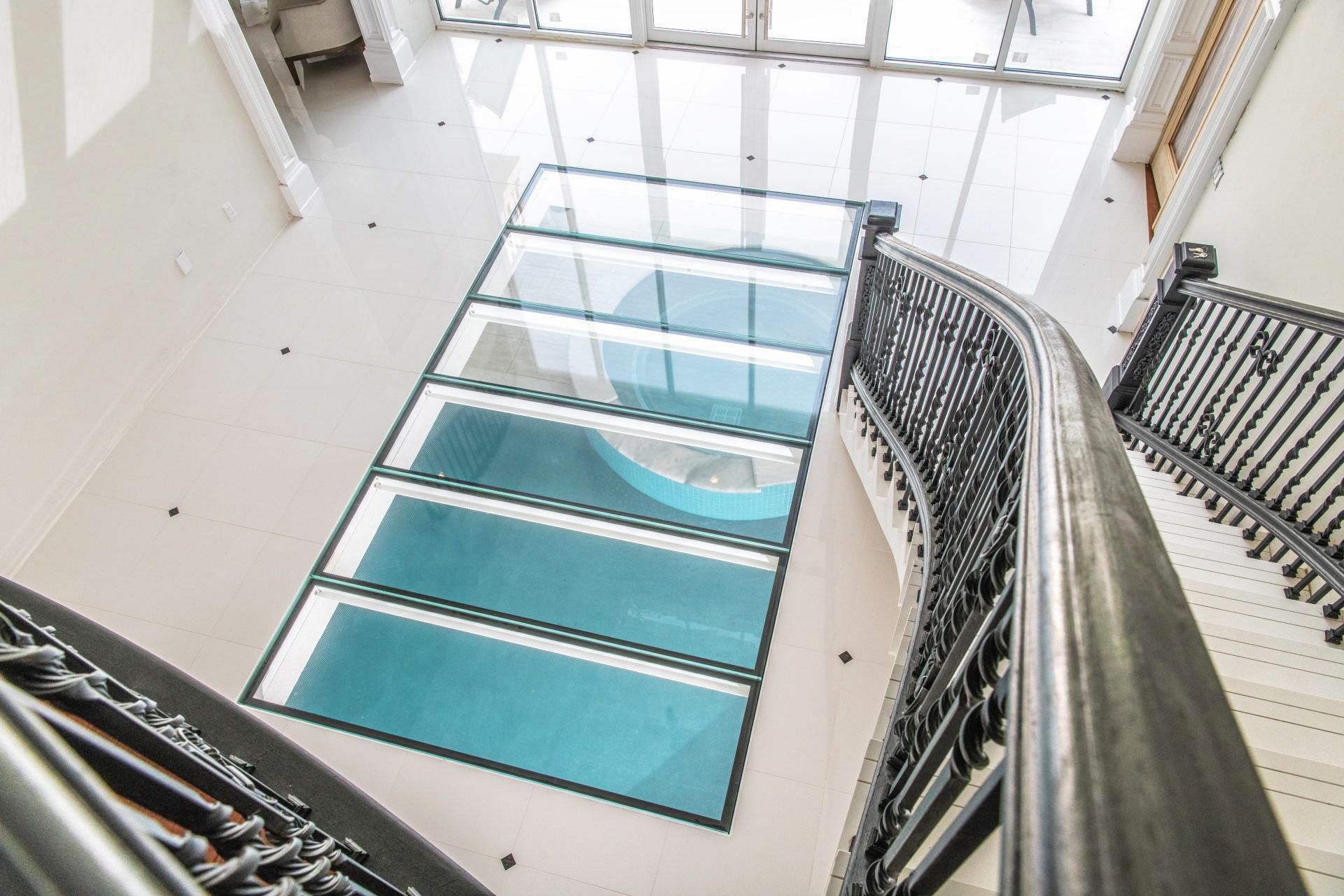

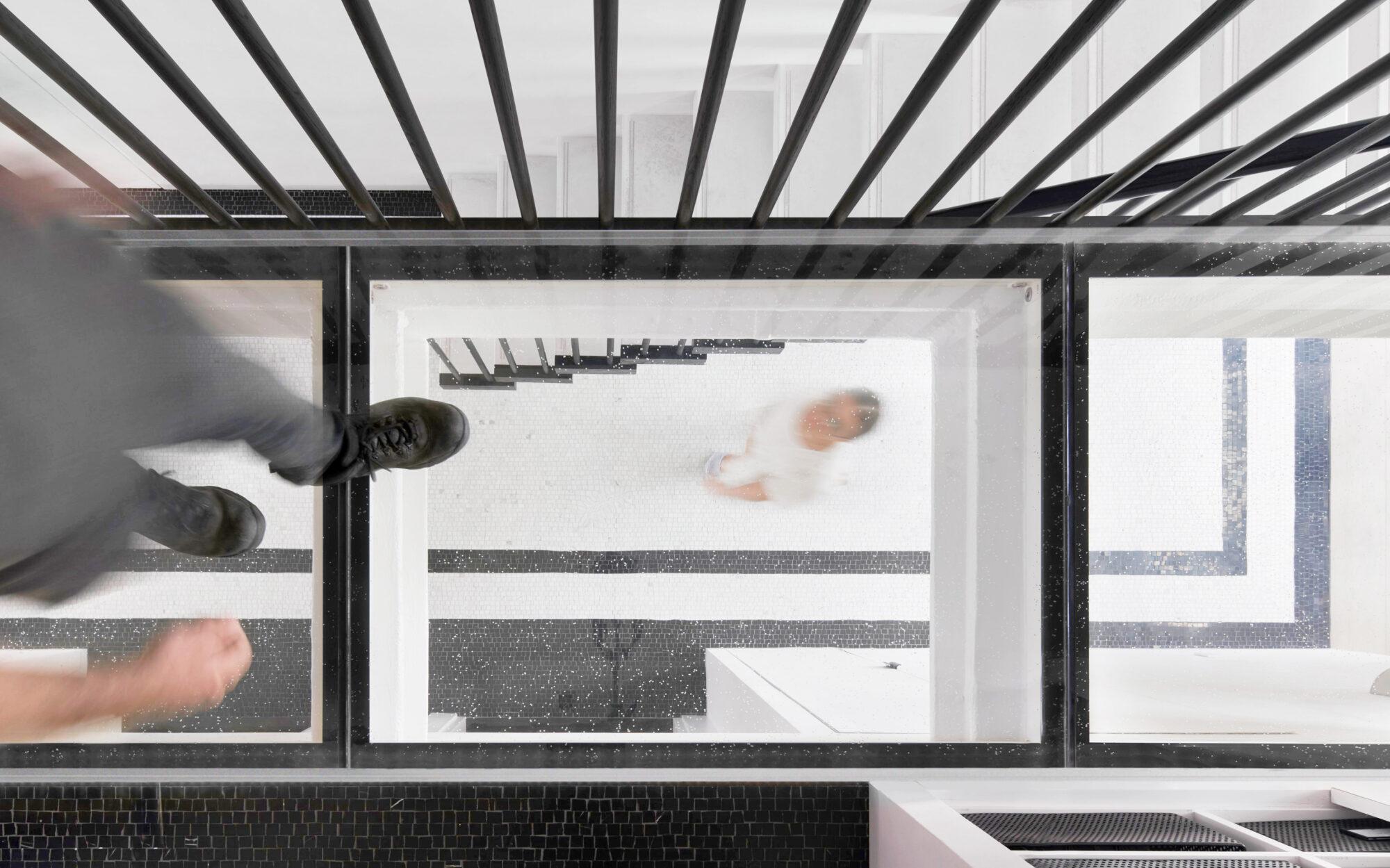

WHEN GLASS ARCHITECTURE MEETS MOVEMENT:
Glass Floors, Stairs, Bridges, and Catwalks

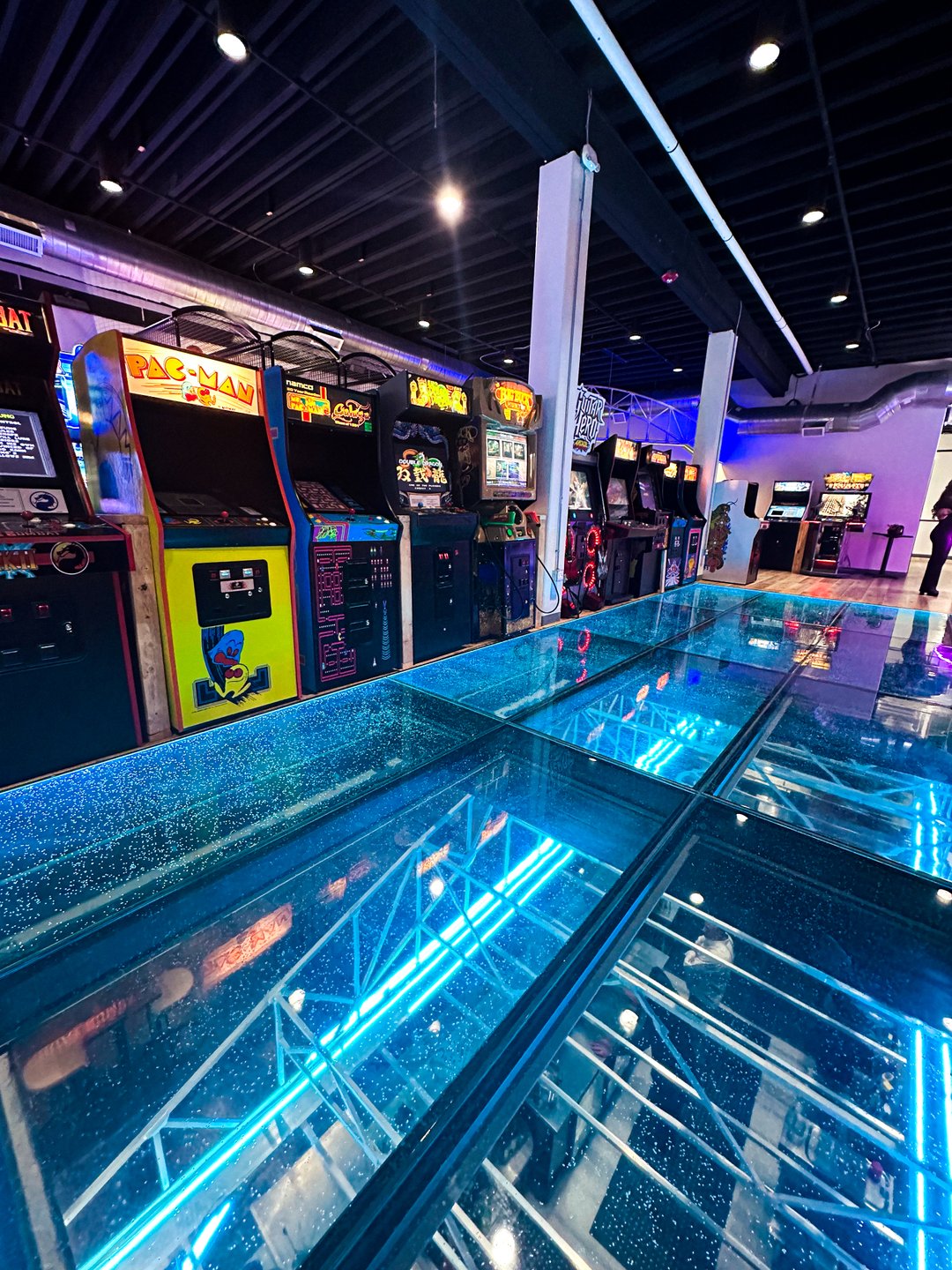

Glass floors and glass staircases allow light to flow while creating a functional focal point that anchors wayfinding. While glass catwalks and glass bridges connect spaces without destroying sightlines, making them ideal for galleries and atria.
When incorporating glass floors, stairs, bridges and catwalks anticipating the functional and visual details is critical to a successful project.
When designing glass stairs, several critical details demand attention. Exposed panel edges should feature post-lamination polished finishes to enhance the visual refinement of treads and landings. Titanium-embedded fasteners provide a clean, secure, and minimally visible method for anchoring treads to stringers.
Riser design offers flexibility; choose UV-bonded glass risers, stainless steel rods, or other custom solutions to align precisely with the intended aesthetic and performance goals. These thoughtful considerations ensure structural integrity, elevated aesthetics, and seamless integration within sophisticated architectural environments.

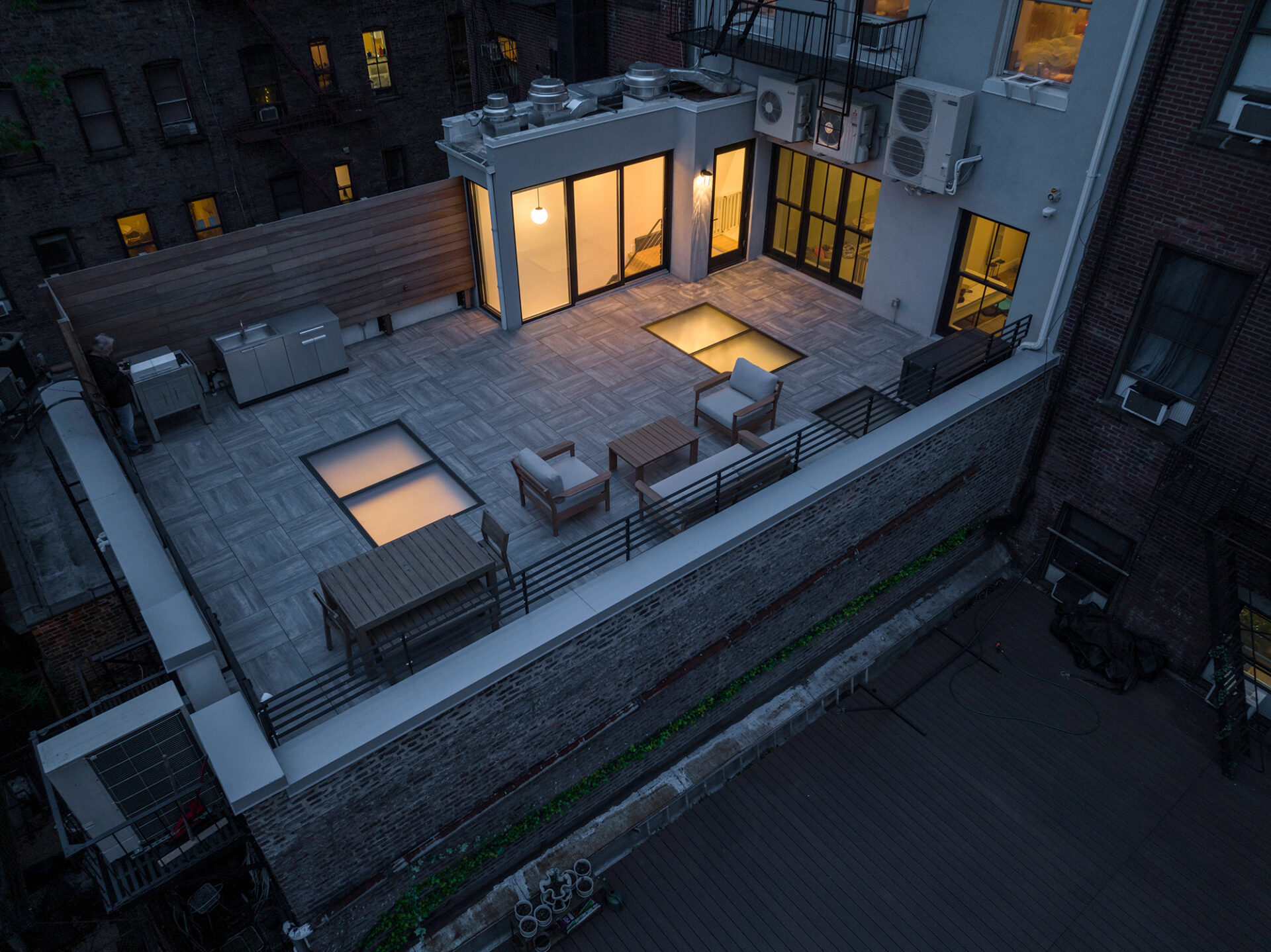

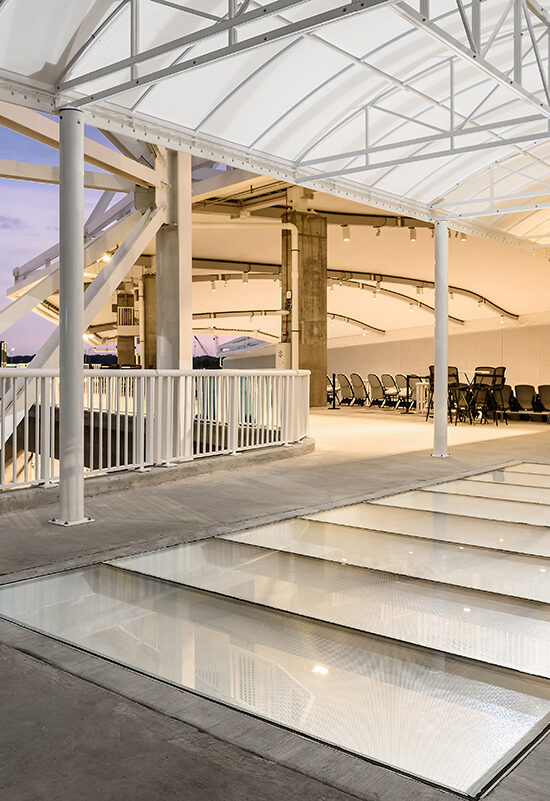

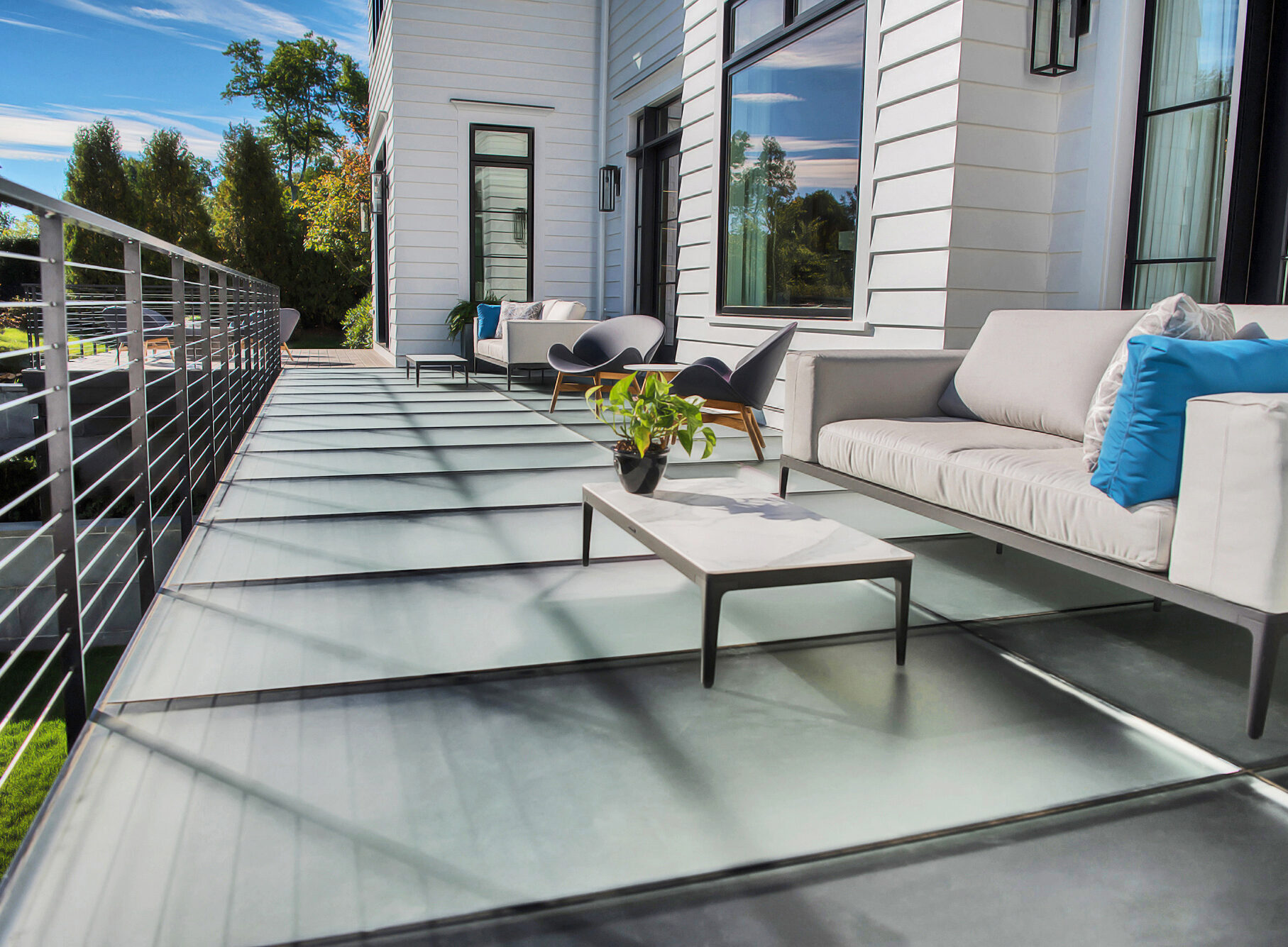

Outdoor Spaces:
Walkable Skylights and Glass Decks

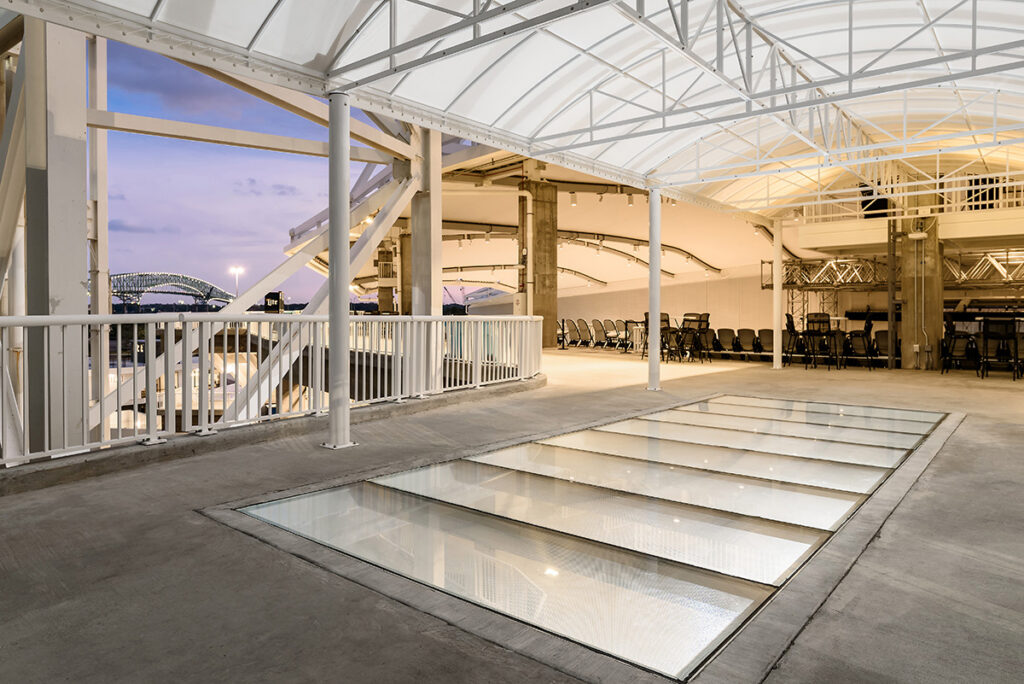

Outdoor spaces are now essential features in both homes and commercial buildings, and walkable glass elevates these outdoor spaces. Roof decks that integrate walkable skylights expand the usable square footage of the outdoor space while flooding the spaces below with natural daylight. When it comes to decks, a fully structural glass deck or walkable glass panels integrated into traditional wood frame decks is an excellent way to enhance your outdoor living space.
Consider the furniture plan, circulation paths, and what is beneath the area when you place horizontal walkable glass outdoors. Small changes in panel location, panel size, or texture can make a dramatic impact and transform any space into a bright and inviting comfortable seating area.
Key Things to Consider with
Walkable Glass Architecture Projects
Designing with walkable glass requires a balance of structural precision, waterproof detailing, energy performance, safety compliance, and aesthetic intent. Each factor plays a critical role in ensuring a safe, durable, and visually seamless installation. Below are the essential considerations for any architect or designer integrating walkable glass skylights, floors, staircases, bridges, or decks into their project.
Structural Considerations
Load-Bearing Capacity
The walkable glass assembly and its supporting frame must safely carry both live loads (people walking on it), dead loads (the glass, framing, and finishes) and environmental loads (wind and snow).
Glass Selection
Use low-iron laminated tempered walkable glass with structural interlayers such as PVB, Saflex® DG, or SentryGlass® for strength, durability, and safety.
Framing & Support
Structural beams or reinforced subframes may be required to transfer loads effectively to the supporting structure.
Deflection Control
Limiting deflection ensures the walkable glass remains stable under load, preventing flexing that could compromise performance or user confidence.
Waterproofing & Envelope Integration
Primary & Secondary Seals
Proper seal systems prevent water and air intrusion.
Flashing & Membrane Tie-Ins
The walkable skylight or deck assembly must integrate precisely with the roof membrane and flashing to maintain long-term waterproof integrity.
Positive Drainage
Gutters, weep holes, and internal channels should route water away from sensitive areas.
Pitch & Slope
Even minimal slope promotes natural runoff, preventing standing water on the walkable glass surface.
Thermal & Energy Performance
Insulating Glazing
Use double- or triple-insulated walkable glass units with low-E coatings to reduce heat gain and loss.
Thermal Breaks in Framing
Incorporate thermally broken framing members to minimize heat transfer and condensation risk.
Solar Control
Orientation, coatings, and shading strategies can help manage glare and solar exposure while maintaining daylight quality.
Safety & Accessibility
Tested Anti-Slip Textures
Always select tested anti-slip textures that meet the ANSI A326.3 safety standard in both wet and dry conditions. At Glass Flooring Systems, every anti-slip surface is tested and verified, offering the largest selection of tested anti-slip textures in the industry for the highest level of safety and performance.
Code Compliance
Ensure the walkable glass system meets local and national building codes for load capacity, impact resistance, and safety glazing.
Aesthetic & Lighting Considerations
Edge Detailing
Coordinate finishes and transitions so the walkable glass integrates seamlessly with adjacent materials; such as pedestal pavers, decking systems, or green roof assemblies.
Light Diffusion
Consider how light transmits through the assembly. Frosted tested anti-slip textures or Vanceva® colored interlayers can soften glare and add visual warmth while maintaining contemporary design aesthetics.
Interior Integration
Align skylights, glass floors, and lighting elements with ceiling grids and interior finishes to create a unified architectural expression.
By addressing these considerations early, architects ensure that walkable glass architecture performs as intended, balancing structural integrity, weather resistance, energy performance, safety, and visual impact.
Specifications, Submittals, and
QUALITY CONTROL
Comprehensive specifications protect your vision and create clarity across trades. Define structural criteria, interlayer requirements, and safety standards, and call out tested anti-slip textures by reference standard. Submittals should include:
- Engineering calculations and P.E. stamped shop drawings.
- Slip-resistance data verifying ANSI A326.3 compliance.
- Product data for sealants, primers, and coatings.
- Quality assurance documentation and cleaning protocols.
A well-documented submittal package demonstrates due diligence and ensures a smooth path from design approval to field installation.
Common Questions About
Walkable Structural Glass
Even experienced design professionals encounter uncertainty when specifying walkable structural glass. Misconceptions about safety, performance, and cost can limit creative potential or lead to overly conservative detailing. Below are some of the most common misunderstandings, and the facts that clarify them.
Is the glass slippery?
No. Every walkable glass panel is equipped with a tested anti-slip surface texture that meets or exceeds the ANSI A326.3 safety standard in both wet and dry conditions. Glass Flooring Systems offers the industry’s largest selection of tested anti-slip finishes, combining safety, durability, and beauty in every application.
Are there privacy concerns with walkable glass floors or skylights?
Not at all. Glass Flooring Systems offers a range of walkable architectural glass options that provide both light transmission and privacy. Depending on the application, you can select frosted or acid etched tested anti-slip surfaces, blurred finishes, or colored interlayers that diffuse light while limiting visibility and eliminating privacy concerns.
How thick is the glass used in your flooring systems?
Our standard interior glass flooring panels are 1 5⁄16″ thick, made from multiple layers of tempered glass laminated together with structural interlayers. Glass makeup and thickness can vary based on specific project requirements and engineering specifications.
How heavy is a glass floor panel?
The weight of a glass floor panel depends on its size, thickness, and load bearing requirements. As a general guideline, non-IGU standard size panels typically weigh approximately 15 pounds per square foot.
What support structure is required for a glass floor?
Typically, 1.5 inches of edge support on all sides is required to support the glass panels and the live load specified for the project.
Do you offer custom sizes or shapes for glass floor panels?
Absolutely. Every project is engineered to fit your design, with options for custom shapes, including rectangular, square, circular, curved, or irregular panels. This flexibility allows architects to create truly unique glass flooring solutions tailored to both residential and commercial spaces.
Can your glass flooring be used outdoors?
Yes. Our systems are engineered for both indoor and outdoor use, including decks, terraces, balconies, walkable skylights, stairs, and bridges. All panels feature tested anti-slip surfaces designed to perform safely in both dry and wet conditions.
How much does a glass floor cost per square foot?
Standard individual glass panels cost approximately $130 per sq. foot while glass panels with standard structural framing costs approximately $275 per sq. foot. Costs will vary based on size, thickness, framing, finishes and performance criteria. Contact us for a project-specific estimate tailored to your design.
What is the typical lead time for a glass flooring system?
In stock orders typically ship out in 1-2 weeks. Custom projects ship within 14–16 weeks after shop drawing approval. Expedited options are available, and timelines for custom projects may vary depending on complexity.
How are glass floors shipped?
Panels are securely crated in our facility and shipped via freight carriers or dedicated trucks to ensure safe delivery to your job site.
Do your glass floors meet building code requirements?
Yes. All of our pre-engineered glass floor systems are designed and manufactured to meet International Building Code (IBC) requirements.
How do I care for my walkable glass?
Walkable glass does not require any additional maintenance than any other flooring, but a little care goes a long way in keeping them bright, and beautiful for years to come.
- Clean glass panels with a non-abrasive glass cleaner or mild soap and water to remove dirt, pollen, and debris. Avoid harsh or abrasive chemicals.
- Use protective pads under furniture or other objects you place on the glass and avoid dragging heavy items across the surface of the glass.
Please keep in mind although you can walk on these skylights, it is still glass and should be treated as such.
