SkyFloor® Series
3000

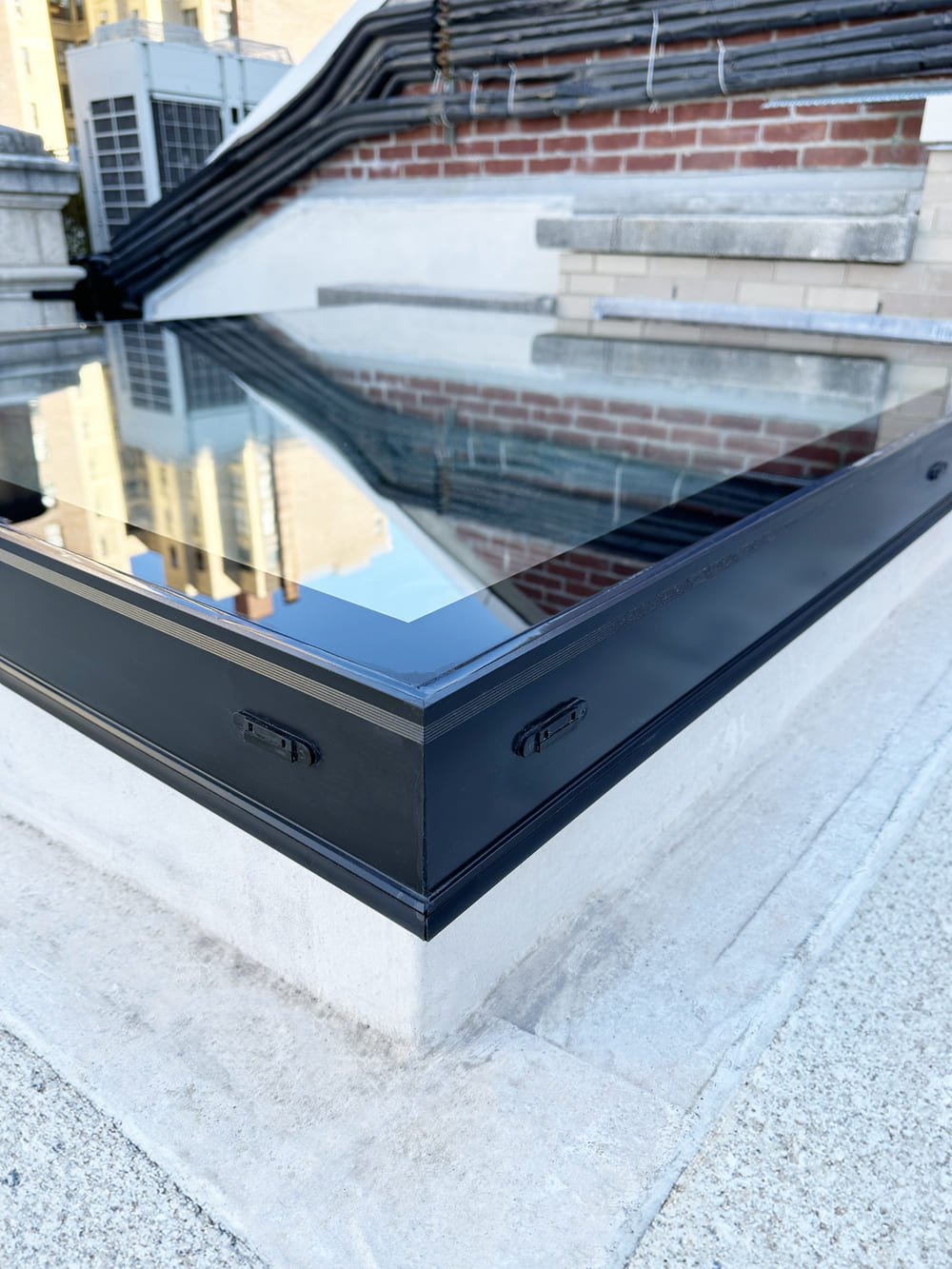

Single Panel Curb Mount Skylights

• Triple-laminated, low-emissivity insulated glass for strength, security, and maximum energy efficiency
• Argon or Krypton gas-filled insulated glass for optimal thermal performance
• Fully thermally broken frames (poured and debridged)
• Quanex® Tri-Seal™ Super Spacer, which is one of the most thermally efficient insulated-glass (IG) warm-edge spacers on the market today
• Proprietary 6063-T6 aluminum extrusions that produce crisp, clean profiles
• Fully independent, self-supported structural framing, engineered for commercial live loads
• Stepped frame assembly that shifts weight away from the IG spacer
• Designed-in, EPDM setting gaskets that work as one with the framing members
• The industry’s largest selection of fully tested, anti-slip textures, including our proprietary NanoDot® and Seeded Organic® top layers
• Ceramic back paint at perimeter of glass for a clean, crisp appearance
• Designed-in, snap-on setting blocks

Customized Steel Systems will include many of these standard features

Our triple-laminated glass assembly is engineered for passive redundancy with panels that meet ASTM E2751 standard. Our panels are fabricated using three layers of low-iron, tempered glass with structural PVB, Saflex® DG, or SentryGlas® interlayers.

Glass Make-Up

• 10mm Low-Iron Tempered
• 1.52mm Interlayer
• 10mm Low-Iron Tempered
• 1.52mm Interlayer
• 10mm Low-Iron Tempered

*Glass make-up may vary on larger panel sizes

View Our Available Textures

At Glass Flooring Systems, we believe in setting the standard for excellence. That’s why our products undergo rigorous testing—because your safety and satisfaction are our top priorities. Whether you’re installing glass flooring or walkable skylights in a home or commercial space, it’s critical to carefully consider the safety of your walkable glass surface. We use only tested anti-slip glass floor textures and offer the largest selection of anti-slip surface options in the industry to meet both aesthetic and safety requirements.

We adhere to the ANSI A326.3 American National Standard Test Method for Measuring the Dynamic Coefficient of Friction (DCOF) of Hard Surface Flooring Materials testing protocol. A BOT-3000E tribometer is used to obtain the DCOF of all our anti-slip textures. The ANSI A326.3 standard for measuring the Dynamic Coefficient of Friction (DCOF) is the only accepted standard for measuring floor traction in the United States. In addition, the ANSI A326.3 provides clarification of appropriate use of flooring surfaces in wet or dry conditions.

The United States has transitioned from the SCOF method to the globally recognized DCOF method. There is no longer a standard for measuring the Static Coefficient of Friction (SCOF), rendering the ASTM C 1028 – SCOF standard unrecognized. Additionally, other European slip-resistant tests are no longer recognized or accepted in the U.S. as a National Standard for DCOF, such as:

At Glass Flooring Systems, safety is never optional. While others may overlook DCOF testing, we adhere to the only nationally recognized standard—ANSI A326.3—to measure the Dynamic Coefficient of Friction. This ensures our products meet the highest safety and performance benchmarks in the industry.

We offer our proprietary aluminum framing systems, engineered for strength and elegance, along with custom steel solutions tailored for projects that demand exceptional design flexibility or advanced structural performance. Our in-house expertise allows us to tackle even the most complex architectural challenges with precision and confidence.

Standard Features

• 6063-T6 aluminum extrusions
  • “T” and “I” rafters
  • Recessed perimeter frame
  • Pedestal perimeter frame
  • Green Roof perimeter frame
• PPG Coraflon® painted finish meets AAMA 2605-05
  • Standard finishes: Black or White
  • Custom colors available
• Setting rubber gasket: EPDM 85 shore hardness
• Accurate stainless steel fasteners

SkyFloor® walkable skylights are engineered for exceptional waterproofing and architectural adaptability. Designed with versatility in mind, every unit integrates smoothly with modern roofing systems—whether your project calls for liquid-applied membranes or rolled rubber roofing, SkyFloor® is built to accommodate your preferred method of waterproofing.

Each skylight is made to order, allowing for precision manufacturing tailored to your specific project needs. To ensure a watertight installation, we offer custom factory-applied flashing details that align seamlessly with your chosen roofing material and site conditions. This eliminates guesswork on-site and minimizes potential points of failure.

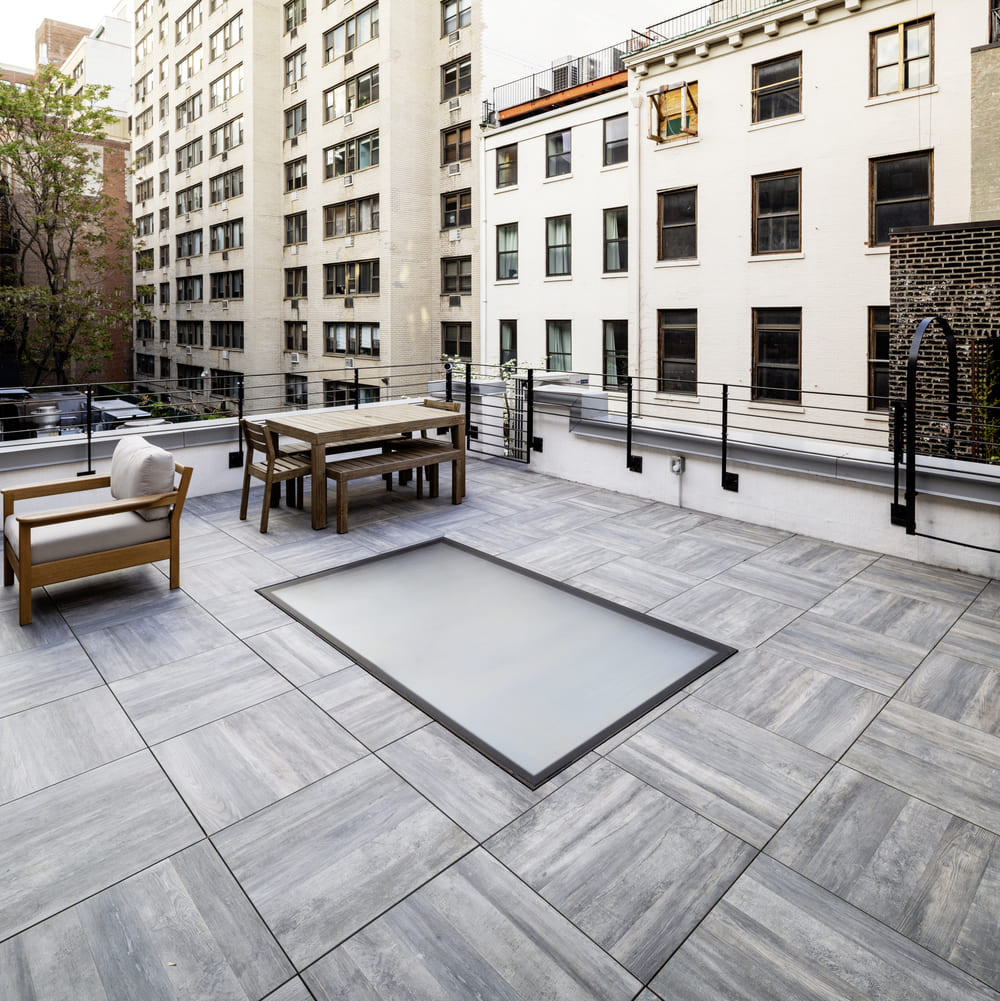

Whether you’re designing a rooftop terrace, balcony, or pool deck, SkyFloor® delivers walkable daylighting with the confidence of durability, leak prevention, and structural integrity.

The SkyFloor® walkable skylight system offers superior waterproofing performance compared to traditional walkable skylights on the market. Here’s a breakdown of what sets SkyFloor® apart:

1. Integrated Monolithic Frame Design

• SkyFloor®: Utilizes a single-piece, thermally broken aluminum frame that minimizes joints and eliminates weak points where water can infiltrate.
• Competitors: Often rely on multi-part frames with field-assembled corners or pressure caps that are more vulnerable to leaks over time.

2. Redundant Drainage Channels

• SkyFloor®: Features a built-in multi-layered drainage system that captures and redirects any incidental moisture away from the structure. Includes:
  • Perimeter gutters
  • Internal weep systems
  • Optional sloped sub-pans
• Competitors: Many lack redundant drainage or only rely on a single gasket or sealant bead, which degrades over time.

3. Factory-Applied Waterproofing and Pre-Glazing

• SkyFloor®: Glazing is sealed and bonded in a controlled environment, ensuring consistent quality. All critical seals are pressure-tested before delivery.
• Competitors: Often rely on field-assembled glazing, increasing the risk of error and uneven sealant application.

4. Structural Load Isolation

• SkyFloor®: Isolates glass dead load and live load from waterproofing components, so movement or foot traffic does not compromise seals.
• Competitors: In many systems, walking loads are transferred through gaskets and perimeter seals, leading to fatigue and failure over time.

5. Seamless Integration with Roofing and Decking

• SkyFloor®: Designed to tie directly into roofing membranes, deck waterproofing systems, and even pedestal paver systems—ensuring a continuous waterproof envelope.
• Competitors: Typically require custom on-site flashing, which is error-prone and hard to maintain.

6. Maintenance-Free Waterproofing

• SkyFloor®: Built to require minimal maintenance with no exposed sealant beads or gaskets that degrade under UV exposure.
• Competitors: Many require frequent resealing or inspection due to exposed components.

---

Summary: Why SkyFloor® Leads in Waterproofing

---

SkyFloor® isn’t just walkable glass—it’s a purpose-built structural skylight system engineered for waterproof longevity. For projects where waterproofing failure isn’t an option, SkyFloor® sets the standard.

Our framing systems feature a durable PPG Coraflon® painted finish that meets the rigorous AAMA 2605-05 standard, delivering long-lasting protection and exceptional color retention—even in the most demanding environments. Every frame is painted in-house at our state-of-the-art paint facility, ensuring consistent quality, precision, and finish control. Standard color options include a sleek black or clean white, chosen for their timeless appeal and design versatility. For projects that demand a custom look, we also offer precision color matching to meet your exact specifications.

Engineering is essential to everything we do, and a large measure of the value we deliver, lies in our engineering prowess. We offer the following array of engineering services and support:

• Pre-engineered systems based on various live load requirements
• PDF, AutoCAD, and BIM format drawings
• Sealed/stamped state-specific shop drawings
• Glass-specific engineering reports
• Glass and frame engineering reports
• Framing/system load charts
• Computerized finite engineering analysis

At Glass Flooring Systems, safety isn’t a feature—it’s the foundation. Every walkable glass panel we build utilizes triple-tempered laminated glass, exceeding the rigorous standards of ASTM E2751. While others may settle for dual-layer glass, we never compromise. Our three-ply construction delivers unmatched strength, built-in redundancy, and superior post-breakage integrity. The result: walkable glass you can trust—engineered for confidence with every step.

When it comes to structural glass, cutting corners is not an option. At GFS, we build safety into every layer.

Our NFRC and ENERGY STAR-rated walkable skylights offer verified energy efficiency, thermal performance, and code compliance—delivering comfort, sustainability, and savings without compromising safety or style. These ratings ensure each skylight meets strict standards for insulation, solar control, and condensation resistance, helping reduce energy costs while supporting green building goals.

We’ve developed the industry’s highest-performing thermally broken walk-on skylight, which has been comprehensively tested to ensure compliance with the National Fenestration Rating Council’s (NFRC) stringent requirements.
